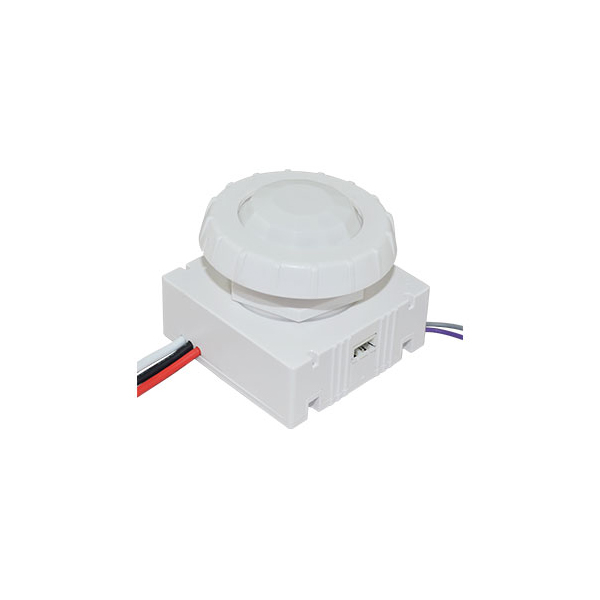

Best Outdoor Pir Sensors IP65 infrared Fixture
Drivers or dimming
ballasts, as well as non-dimming ballasts and, with an Fresnel Lens, is rated for wet and
cold locations. All control parameters are adjustable via a wireless configuration tool
capable of storing and transmitting sensor profiles.
Technical parameters
1201277 VAC,50/60Hz
800W/1200W MaxTungsten,Ballasts,LED driver
1/6HP
Detect Area: 360°, maximum coverage 60′ diameter from 40′ height
High mode:0-10 v:default 10 w
Low mode:off.0-9.8v:default i v
Operating temperature:-40-158°F(-40-70°C)
Operating Humidity:20-90%
P66
Five yearwarranty
Product brief
Line Voltage Passive infrared Fixture integrated outdoor sensor, low bay and high bay for choice.
The In an outdoor lighting fixture and provides multi-evel control based
on motion and/or daylight contribution. It controls 0-10 VDC LED
Drivers or dimming
ballasts, as well as non-dimming ballasts and, with an Fresnel Lens, is rated for wet and
cold locations. All control parameters are adjustable via a wireless configuration tool
capable of storing and transmitting sensor profiles.
Technical parameters
1201277 VAC,50/60Hz
800W/1200W MaxTungsten,Ballasts,LED driver
1/6HP
Detect Area: 360°, maximum coverage 60′ diameter from 40′ height
High mode:0-10 v:default 10 w
Low mode:off.0-9.8v:default i v
Operating temperature:-40-158°F(-40-70°C)
Operating Humidity:20-90%
P66
Five yearwarranty
Function and options
If offers 3 levels of the light Contral: 100%–dimming light (0,10%,30%,50%)–off; Periods of
selectable waiting time: motion hold-time and 24hours, selectable daylight threshold, and
freedom of detection area.
If natral light lower light-control setting(10Lux,30Lux.50Lux),the light will not automatically
on (10%,30%,50%).When person enter in the room,thelight will on 100%,after person left the
room,the room enter in semi bright brightness after hold on time.
