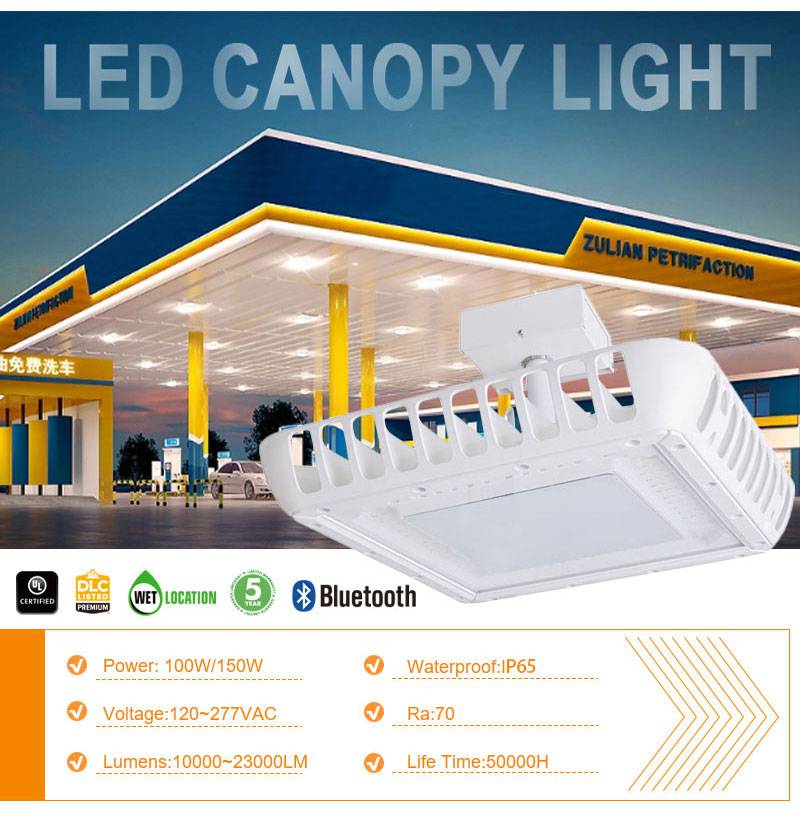

Gas Station Light Fixtures 100W 150W 160W Gas Station Canopy LED

Construction

● Die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber.
● Casting thermally conducts LED heat to optimize performance and long life.
● With corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the indoor and outdoor environment.

Optics

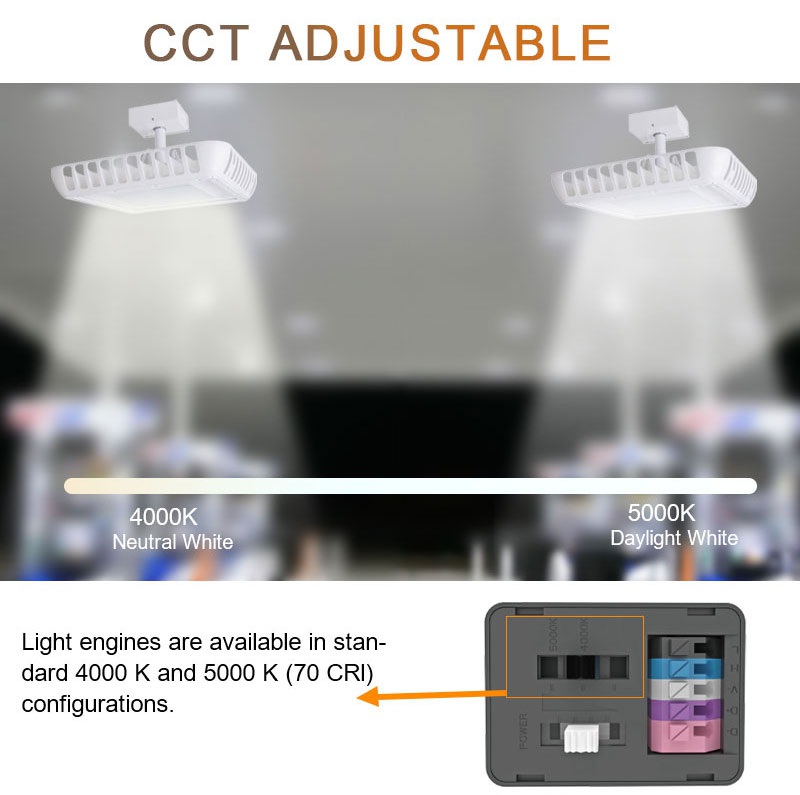

● Light engines are available in standard 4000 K and 5000 K (70 CRI) configurations.
● Scalable Lumen Packages from 10,000 to 23,000 Lumens.
● Tempered glass lens is designed for excellent light output and uniformity.
● The optional Type III light type provides corner illumination without wasting light.

Electrical
● Universal 120-277 VAC or 347/480VAC input voltage.

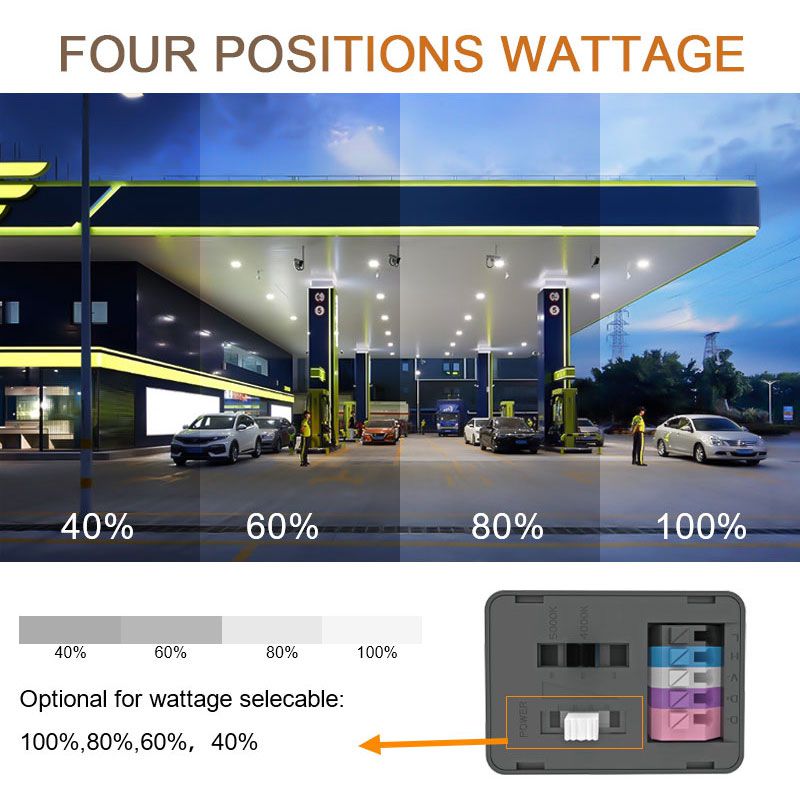

● Optional for wattage selectable：100%,80%,60%，40%.
● 0-10V dimming driver standard for 10% to 100% dimming.
● Both drivers have a power factor >90%, THD <20%. ● Operating Temperature Range: -40°C to 50°C (-40˚F - + 122˚F). SPECIFICATION FEATURES Lifespan ● Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations. Warranty ● Five-year limited warranty. Certifications ● UL cUL wet location listed. ● DesignLights Consortium™ Qualified. Note ● Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice. Controls ● Optional Occupancy sensor, Microwave sensor, Multifunction Sensor or daylight sensor. ● Optional Bluetooth sensor or Bluetooth controller. ● Silvair Luminaire Level Lighting Control (LLLC) optional ● Sharkward Luminaire Level Lighting Control (LLLC) optional. ● Haisen Luminaire Level Lighting Control (LLLC) optional. ● Also compatible with 3rd party smart network control system. ● Compatible with high end trim.
