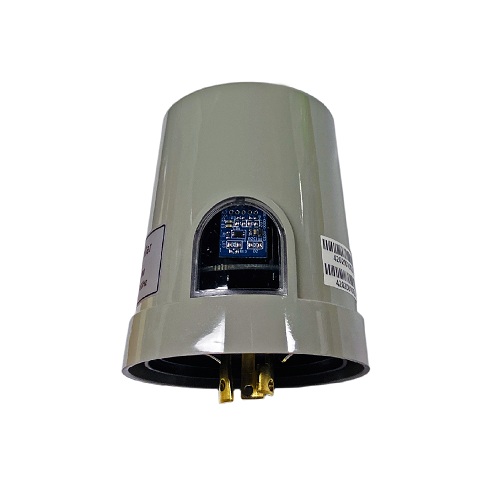

LTE Cat.1/Cat.4 Lamp Controller NEMA

MOQ: 1 Pcs (Min. Order)
SKU: BBIER-LCU16LTE

Lamp controller with NEMA 7-PIN interface works with LTE network (Cat.4/Cat.1) and supports DALI and 0-10V dimming. Support LTE FDD, LTE TDD, WCDMA, and GSM Mode.

Please Send Inquiry, we'll get back to email you in 12 hours.

Description
– Support LTE FDD, LTE TDD, WCDMA, and GSM Mode.
– Standard NEMA 7-PIN interface, plug, and play.
– TCP protocol supports remote connection to the server.
– Remotely turn ON/OFF, built-in 16A relay.
– Dimming interface: DALI and 0-10V.
– Failure detection: lamp failure, power failure, over-voltage, over current, under voltage, power outrage.
– Automatically report failure notification to the server, and all trigger thresholds are configurable.
– Built-in power meter supports remotely reading real-time status like the voltage, current, power, energy, etc.
– Built-in RTC, support scheduled tasks.
– Built-in photocell, auto control via Lux value.
– Optional configuration: GPS.
– Support online firmware upgrading (OTA).
– Lightning protection & IP65 waterproof.
