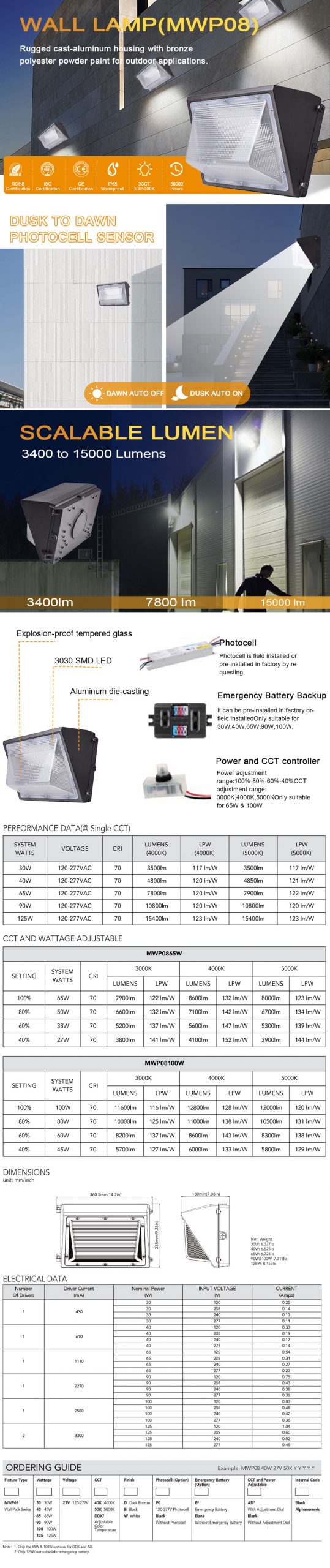

MWP08 Wall Mount Light 30W 40W 65W 90W 125W 120-277VAC

Combined with high-efficiency light engine, the classic WP08 LED wall pack familyfeatures a high-quality UV-resistant PC lens, which provides excellent lighting.It combines low cost, high performance with controls and emergency options, andthe 65W and 100W also feature adjustable color temperatures for increased flexibilityin the field and on distributor shelves.

Construction

• Rugged cast-aluminum housing with bronze polyester powder paint for outdoor applications.
• Casting thermally conducts LED heat to optimize performance and long life.
• The housing is completely sealed, providing excellent protection against moisture and environmental contaminants.

Optics

• Single CCT 4000K and 5000K are available for standard version, and the 65W, 100W offer the color tunableversion, the CCT can be changed to 3000K/4000K/5000K.
• Scalable Lumen Packages from 3,400 to 15,000 Lumens.
• UV stabilized polycarbonate is available for the optic lens, the professional prismatic design offers a good lightdistribution control and guarantees the uniformity.

Electrical

• Universal 120-277 VAC input voltage.
• Optional 0-10V dimming and dimming range from 10%-100%.
• Both drivers have a power factor >90%, THD <20%.
• Operating Temperature Range: -40°C to 40°C (-40˚F – + 104˚F).

Note:Actual performance may differ as a result of end-user environment and application. All values are design or typicalvalues, measured under laboratory conditions at 25℃(±5℃ ) specifications subject to change without notice.
