Outside Pir Sensor IP65 120-277V Passive Infrared Sensor
Technical parameters
1201277 VAC,50160Hz
Resistive/Halogen-800W@120V/1200W@277V
Fluorescent Ballast-660W@120V/1200W@277V
Electronic Ballast(LED/CFL)-5A@120V15A@277V

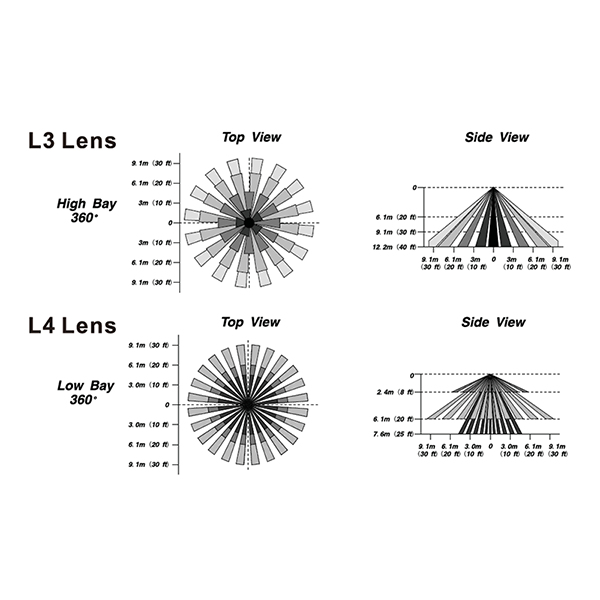

Detect Area: 360°, maximum coverage 60′ diameter from 40′ height
High mode: 0-10 V; default 10 V
Low mode: Off, 0-9.8 V; default 1 V
Operating temperature:-40-158°F(-40-70°C)
Operating Humidity:20-90%
IP65 for PIR LEN(top part of the sensor)
Five year warranty
This function inside the motion sensor to achieve tri-evel control, for some areas which require alight change notice before switch-off.
The sensor offers 3 levels of light: 100%->dimmed light (natural light is insufficient) –>off; and 2 periods of selectable waiting time: motion hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.
Technical parameters
1201277 VAC,50160Hz
Resistive/Halogen-800W@120V/1200W@277V
Fluorescent Ballast-660W@120V/1200W@277V
Electronic Ballast(LED/CFL)-5A@120V15A@277V
Detect Area: 360°, maximum coverage 60′ diameter from 40′ height
High mode: 0-10 V; default 10 V
Low mode: Off, 0-9.8 V; default 1 V
Operating temperature:-40-158°F(-40-70°C)
Operating Humidity:20-90%
IP65 for PIR LEN(top part of the sensor)
Five year warranty
