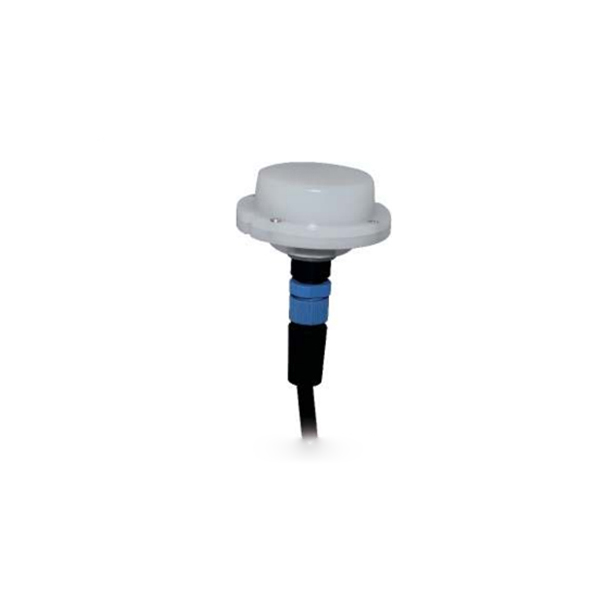

Wireless Pir Sensor Outdoor 12-24V for Round UFO
Power supply: 12V-24V DC，>50mA
Dim control output: 0-10V, max.25mA sinking current
HF System: 5.8GHz+75MHz
Transmission power: <0.2mW
Detectionradius: 20%150%175%/100%(1-8m)
Mounting height: Max 50ft.(15meters)
Time setting: 10s/1min/5min/10min/15min/20min/30min/60min
Light-control: 24H/10LUX/30LUX/50LUX
Temperature: -4°F~+140°F(-20°C~+60°C)
IP rating: IP65
Introduction

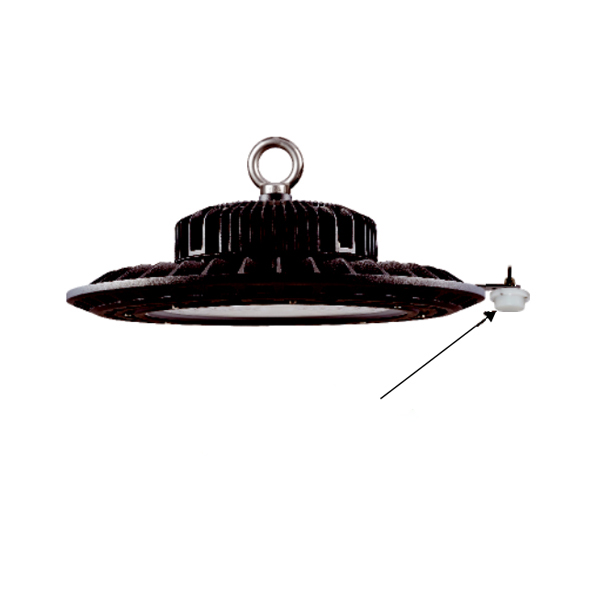

The Is a motion sensor that dims lighting from high to low based on movement. This slim, low
profile sensor is designed for installation inside the bottom of a light fixture body, The sensor plus module
connects to the sensor socket through a 0.81″ diameter hole in the bottom of the fixture.
The sensors use microwave sensing technology that reacts to changes in movement within the coverage area
Once the sensor stops detecting movement and the time delay elapses lights wil go from high to low mode and
eventually to an OFF position if it is desired. Sensors must directly “see” motion of a person or moving object to
detect them, so careful consideration must be aiven to sensor uminaire placement and ens selection. Avoid
placing the sensor where obstructions may block the sensor’s line of sight.
