What is 0-10v dimming vs line voltage dimming?

What is 0-10v dimming vs line voltage dimming?

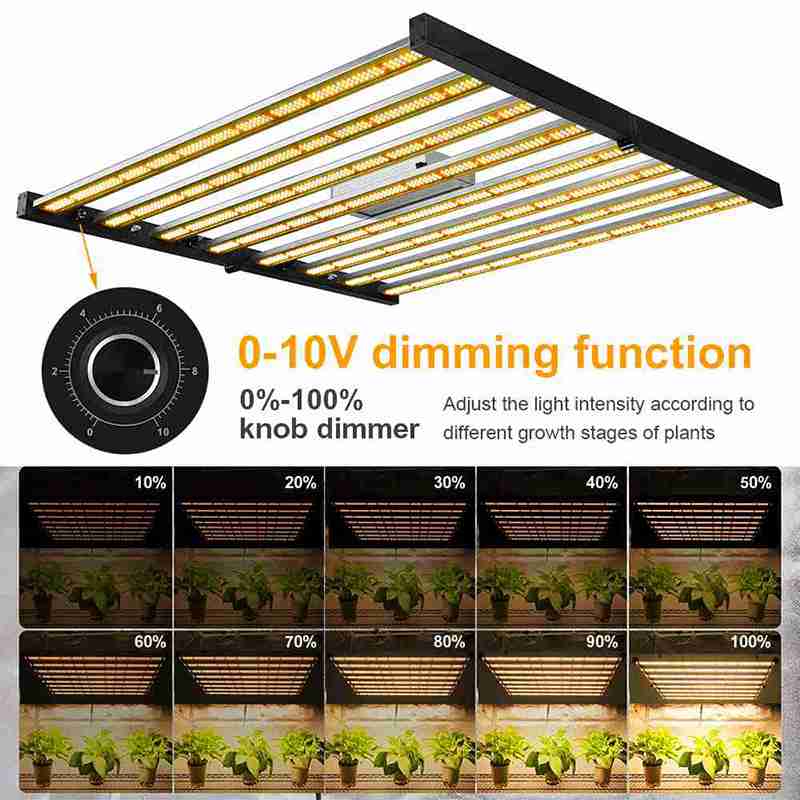

0-10V dimming is a type of dimming system that uses a low-voltage signal to control the brightness of a light. This low-voltage signal is typically sent from a dimming controller or a dimming switch to a compatible LED driver or ballast, which then adjusts the current flowing through the LED or fluorescent lamp to adjust the light output.

Line-voltage phase-cut dimming controls light output by cutting part of each AC waveform on the power conductors. Forward-phase (leading-edge) and reverse-phase (trailing-edge) dimmers cut different parts of the waveform; the lamp or driver must support the selected method. See Leviton’s forward- and reverse-phase application note.

The key distinction is the control path, not simply LED versus traditional lighting. Compatible LED products can use either method. A wired 0-10V system uses a separate low-voltage control pair in addition to power wiring; a phase-cut dimmer controls the waveform on the power wiring. For an example of separate switching and 0-10V control, see Leviton’s explanation of 0-10V dimmers.

Neither method guarantees a particular dimming range or better performance with every fixture. Check the exact driver, dimmer and load ratings. With 0-10V, the driver or ballast determines the actual light-output response, including the minimum dimming level, as explained in Leviton’s minimum-dimming-level guidance.

Many friends often ask a question, Can you line voltage dim a 0-10V fixture?

A 0-10V rating alone does not establish phase-cut compatibility. Use a line-voltage phase-cut dimmer only when the exact fixture or driver documentation expressly supports that dimming method. Do not assume that a fixture supports both methods or has a selector switch.

It is always important to consult the fixture’s manufacturer’s instructions and specifications before attempting any dimming method to avoid damaging the fixture or causing any electrical hazards.

What is the difference between ELV and 0-10V dimming?

ELV dimming generally refers to reverse-phase (trailing-edge) control used with compatible electronic low-voltage loads. The dimmer modifies the AC waveform; it is not simply a transformer reducing the supply voltage.

ELV dimmers can also control compatible LED loads. For example, Lutron’s Diva reverse-phase dimmer specification lists dimmable LEDs with integrated drivers and requires LEDs rated for reverse-phase or universal dimmers. This is a compatibility example, not a claim that every LED driver or BBIER fixture supports ELV dimming.

By contrast, 0-10V uses a separate low-voltage signal to a compatible driver or ballast. Match the control method to the equipment documentation rather than choosing on the basis of lamp technology alone.

Is ELV dimming line voltage?

Yes. In this context, an ELV dimmer uses reverse-phase control on the line-voltage supply. The term does not mean it uses the same control interface as 0-10V. Confirm the exact dimmer and load pairing with the manufacturers before installation.
