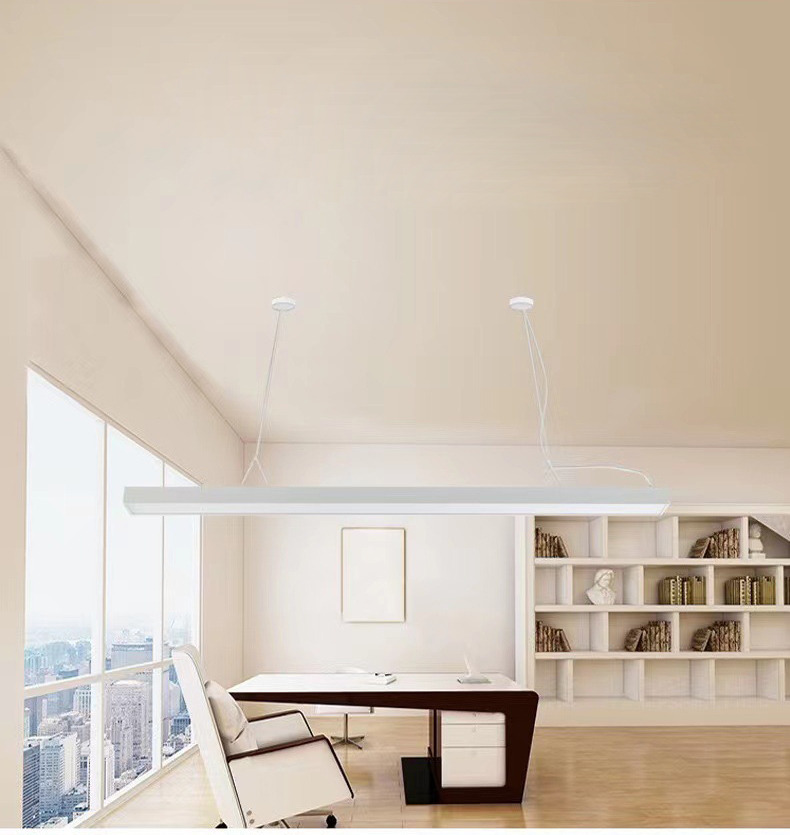

Linear LED 25W 50W 100W Linear Suspension Lighting

Construction

Strong, durable formula for long-lasting color.

The diffuser and endcaps at the ends of the fixture overlap to

eliminate gaps and LED visibility.

Custom patterns with optional L, X and T joiners.

Just 1.9 inches wide, featuring a minimalist and stylish look.

Pendant, surface or wall mount in 2′, 4′, 8′ lengths.

Optics

Three optional types of indirect and direct light distributions can be

set by dip switch.

Three Field-Selectable CCTs :3500K, 4000K, 5000K.

Scalable lumen packages range from 1,525 to 12,500 lumens

and up to 125 lm/W.

<5 SDCM color consistency, 80 CRI, or 90 CRI options.

High-transmission polycarbonate lens for smooth light distribution

and uniformity.

Electrical

Universal 120-277 VAC input voltage.

0-10V dimming driver with 10%-100% dimming range.

Selectable Wattage Levels: 100%, 80%, 60%.

PF > 0.9，THD < 20%.

Highly efficient and durable Class II drivers are available.

Operating Temperature Range: -20°C to 40°C (-4˚F – + 104˚F).

Mounting

Drop Ceiling Pendant Mount.

Surface Mount.

Wall Mount.

Dry Wall Pendant Mount.

Lifespan

Estimated L70 ≥100,000-hour LED lifespan based on

IES TM-21 calculations at 25°C.

Finish

It’s available in white, black, and silver gray.

Warranty

Five-year limited warranty.

Certification

UL cUL damp location listed.

Application

Offices, conference rooms, education facilities, retail stores

and supermarkets, reception areas, hallways, gyms, etc.

Note

Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C (±5°C ). Specifications are subject to change without notice.
